EPIC::EventGeneratorFOAM Class Reference

Event generator based on FOAM library. More...

#include <EventGeneratorFOAM.h>

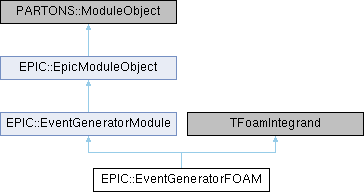

Inheritance diagram for EPIC::EventGeneratorFOAM:

Public Member Functions
	EventGeneratorFOAM (const std::string &className)
	EventGeneratorFOAM (const EventGeneratorFOAM &other)
virtual	~EventGeneratorFOAM ()
virtual EventGeneratorFOAM *	clone () const
virtual void	configure (const ElemUtils::Parameters &parameters)
virtual void	initialise (const std::vector< KinematicRange > &kinematicRanges, const EventGeneratorInterface &service)
virtual std::pair< std::vector< double >, double >	generateEvent ()
virtual std::pair< double, double >	getIntegral ()
virtual Double_t	Density (Int_t ndim, Double_t *)
Public Member Functions inherited from EPIC::EventGeneratorModule
	EventGeneratorModule (const std::string &className)
	EventGeneratorModule (const EventGeneratorModule &other)
virtual	~EventGeneratorModule ()
virtual void	configure (const ElemUtils::Parameters &parameters)
virtual bool	runTest () const
virtual void	initialise (const std::vector< KinematicRange > &kinematicRanges, const EventGeneratorInterface &service)=0
virtual std::pair< std::vector< double >, double >	generateEvent ()=0
virtual std::pair< double, double >	getIntegral ()=0
const std::string &	getInitStatePath () const
void	setInitStatePath (const std::string &initStatePath)
Public Member Functions inherited from EPIC::EpicModuleObject
virtual	~EpicModuleObject ()
virtual bool	runTest () const =0
size_t	getSeed () const

Static Public Attributes
static const std::string	PARAMETER_NAME_NCELLS
	Key to set EventGeneratorFOAM::m_nCells.
static const std::string	PARAMETER_NAME_NSAMPL
	Key to set EventGeneratorFOAM::m_nSampl.
static const std::string	PARAMETER_NAME_NBIN
	Key to set EventGeneratorFOAM::m_nBin.
static const std::string	PARAMETER_NAME_OPTREJ
	Key to set EventGeneratorFOAM::m_OptRej.
static const std::string	PARAMETER_NAME_OPTDRIVE
	Key to set EventGeneratorFOAM::m_OptDrive.
static const std::string	PARAMETER_NAME_EVPREBIN
	Key to set EventGeneratorFOAM::m_EvPerBin.
static const std::string	PARAMETER_NAME_CHAT
	Key to set EventGeneratorFOAM::m_Chat.
static const unsigned int	classId
Static Public Attributes inherited from EPIC::EventGeneratorModule
static const std::string	EVENT_GENERATOR_MODULE_CLASS_NAME
	Class name used in parsing XML.
static const std::string	EVENT_GENERATOR_MODULE_INIT_STATE_PATH
	String used to set path to init state file type via XML scenario.

Additional Inherited Members
Protected Member Functions inherited from EPIC::EventGeneratorModule
virtual void	initModule ()
virtual void	isModuleWellConfigured ()
Protected Member Functions inherited from EPIC::EpicModuleObject
	EpicModuleObject (const std::string &className, PARTONS::ChannelType::Type channelType)
	EpicModuleObject (const EpicModuleObject &other)
Protected Attributes inherited from EPIC::EventGeneratorModule
std::string	m_initStatePath
	Path to file to either load (if exist) or save (if not) initial state of generator.
Protected Attributes inherited from EPIC::EpicModuleObject
size_t	m_seed
	Random seed.

Detailed Description

Event generator based on FOAM library.

This is event generator module based on FOAM library as implemented in ROOT.

Constructor & Destructor Documentation

EventGeneratorFOAM() [1/2]

EPIC::EventGeneratorFOAM::EventGeneratorFOAM

(

const std::string &

className

)

Default constructor.

EventGeneratorFOAM() [2/2]

EPIC::EventGeneratorFOAM::EventGeneratorFOAM

(

const EventGeneratorFOAM &

other

)

Copy constructor.

~EventGeneratorFOAM()

virtual EPIC::EventGeneratorFOAM::~EventGeneratorFOAM ( )

virtual

Destructor.

Member Function Documentation

configure()

virtual void EPIC::EventGeneratorFOAM::configure ( const ElemUtils::Parameters &  parameters )

virtual

Reimplemented from EPIC::EventGeneratorModule.

generateEvent()

virtual std::pair< std::vector< double >, double > EPIC::EventGeneratorFOAM::generateEvent ( )

virtual

Generate event.

Implements EPIC::EventGeneratorModule.

getIntegral()

virtual std::pair< double, double > EPIC::EventGeneratorFOAM::getIntegral ( )

virtual

Get integral over distribution and integrated error.

Implements EPIC::EventGeneratorModule.

initialise()

virtual void EPIC::EventGeneratorFOAM::initialise ( const std::vector< KinematicRange > &  kinematicRanges, const EventGeneratorInterface &  service  )

virtual

Initialize.

Implements EPIC::EventGeneratorModule.

Member Data Documentation

classId

const unsigned int EPIC::EventGeneratorFOAM::classId

static

Unique ID to automatically register the class in the registry.

---

The documentation for this class was generated from the following file:

• /Users/pawel/projects/epic/NEW2/epic/include/modules/event_generator/EventGeneratorFOAM.h
